FactSheet

Developer:

Lucid Sight, Inc.

Based in Los Angeles, CA

Release Date:

Coming Soon

Platforms:

Oculus Touch

HTC Vive

Website:

cadxr.com

Pricing:

$199

Description

CAD XR is a visualization tool that allows users to view their CAD (computer-aided design) models in virtual or augmented reality at 90 FPS. Our user interface is extremely simple and intuitive, and also allows for a wide array of customization options.

Viewing models in CAD XR gives users a true visualization of their projects without the need of construction or physical models. CAD XR allows users to make adjustments to an object that they wouldn’t normally be able to judge without physically seeing it in person. Dismantle models, modify scale, adjust model lighting and more with CAD XR to customize your CAD viewing experience to your needs.

Features
  • Performs at 90 FPS

  • Simple button interface with a Radial UI menu

  • Easily swap between files

  • Easily modify model color scheme and brightness

  • ​3D CAD models with a fully adjustable scale

  • ​Ability to walk through building designs​

  • Simple 3-step process to view models in VR

Data and Technical Specs
  • CAD XR supports the following formats:

    • AutoCAD DXF (.dxf)

    • Collada (.dae)

    • Stereolithography (.stl)

    • Wavefront Object (.obj)

  • Windows-based application allows for high performance

  • VR compatible - Utilizes HTC Vive and Oculus Rift

  • Controller support for HTC Vive and Oculus Touch controllers for the VR viewer

  • Easy hand and grip controls to allow fluid model manipulation in the VR viewer

  • Built-in 3D desktop viewer lets users view and play around with a model

  • Shows the triangle count of loaded models in the 3D viewer

  • Supports up to 10 million triangles

  • Displays a coordinate system and viewcube with respect to the 3D model

  • Simple and intuitive mouse controls for 3D desktop viewer

  • Gives users the freedom to export converted files to any specified destination

  • Files can be sorted per the user’s needs (by date, name, or size)

  • User-friendly tool tips are always available to provide assistance

  • Supports backwards-compatible x64 architecture

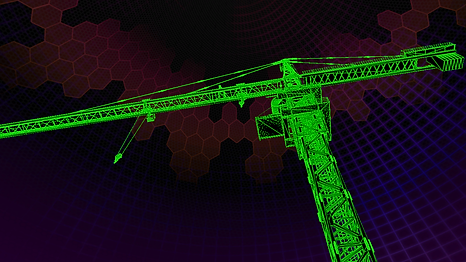

Screenshots
Logo
trailer & Tutorial
